Twin turbo kit for small-block Ford 260, 289, 302 (5.0L) and 351 engines, including Fox-body Mustang builds. Two T25 turbochargers and thick cast iron manifolds are paired with a front-mount intercooler and polished piping kit. The T25 units are sized for quick spool, and the heavy cast manifolds help keep heat in the exhaust.
Engine Compatibility
- Ford small-block 260, 289, 302 (5.0L), and 351

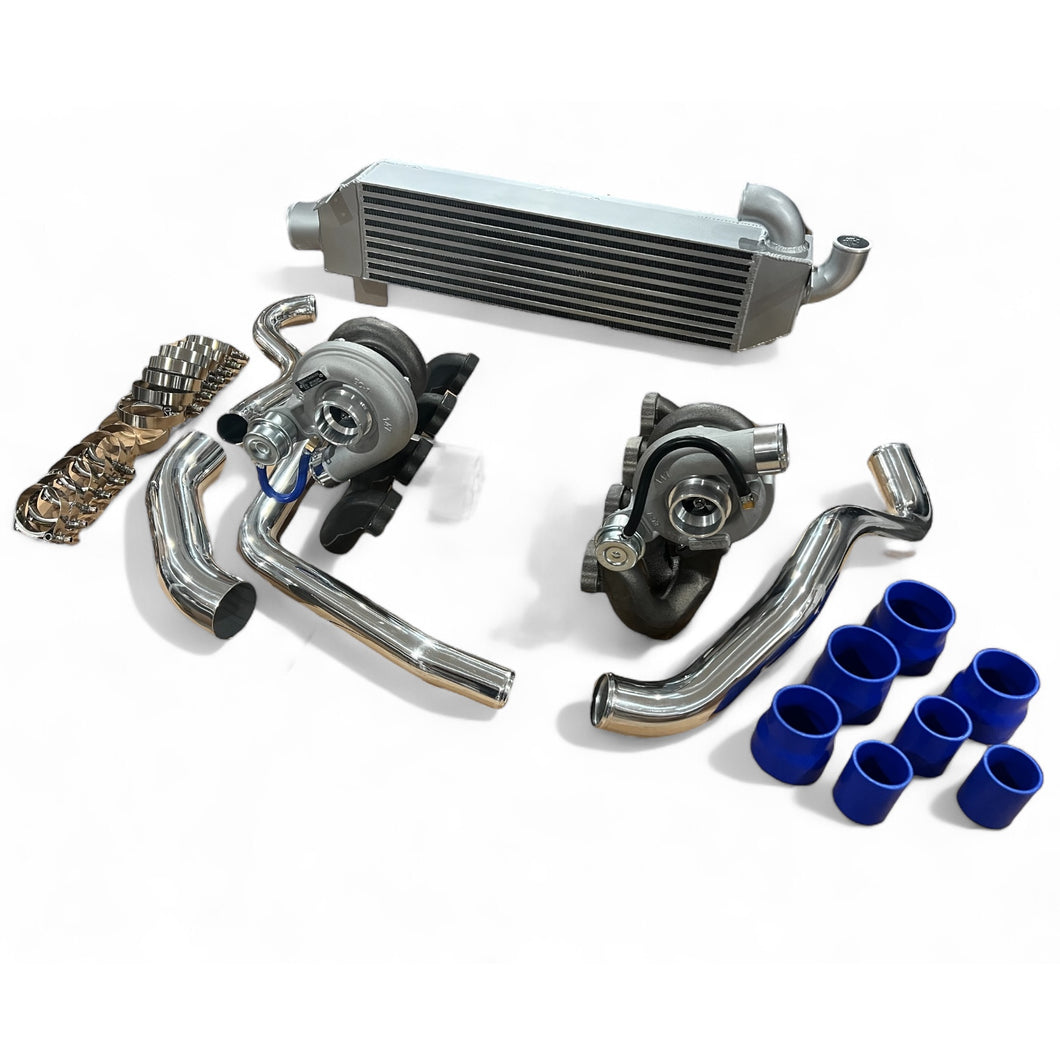

Included in the Kit
- (2) T25 turbochargers
- (2) Cast iron turbo manifolds
- Front-mount intercooler with piping kit
T25 Turbocharger Specs
- T25 flange
- Oil cooled
- Internal wastegate, 20 psi setting
- Turbine housing A/R: 0.45
- Turbine wheel: 50.3 mm inducer / 42.7 mm exducer, 9 blades
- Compressor wheel: 37.6 mm inducer / 56 mm exducer, 6+6 blades
- Wet float bearings, balanced
- 3" inlet / 2" outlet
Cast Turbo Manifolds
- Thick cast iron construction
- High-flow primaries
- Extra-thick flanges to support the turbos
Intercooler and Piping
- Lightweight aluminum intercooler with TIG-welded construction
- 3" cold outlet and 2.25" hot inlets
- Mounting brackets included
- Polished piping (may require cutting to fit)
- T-bolt clamps and multi-layer couplers
Good to Know
- Additional fueling, tuning, and oil feed/return lines are needed for a complete, safe turbo setup.
- Professional installation is recommended.
