T70 T4 Turbo and Hot-Side Package for Listed Corvette Applications

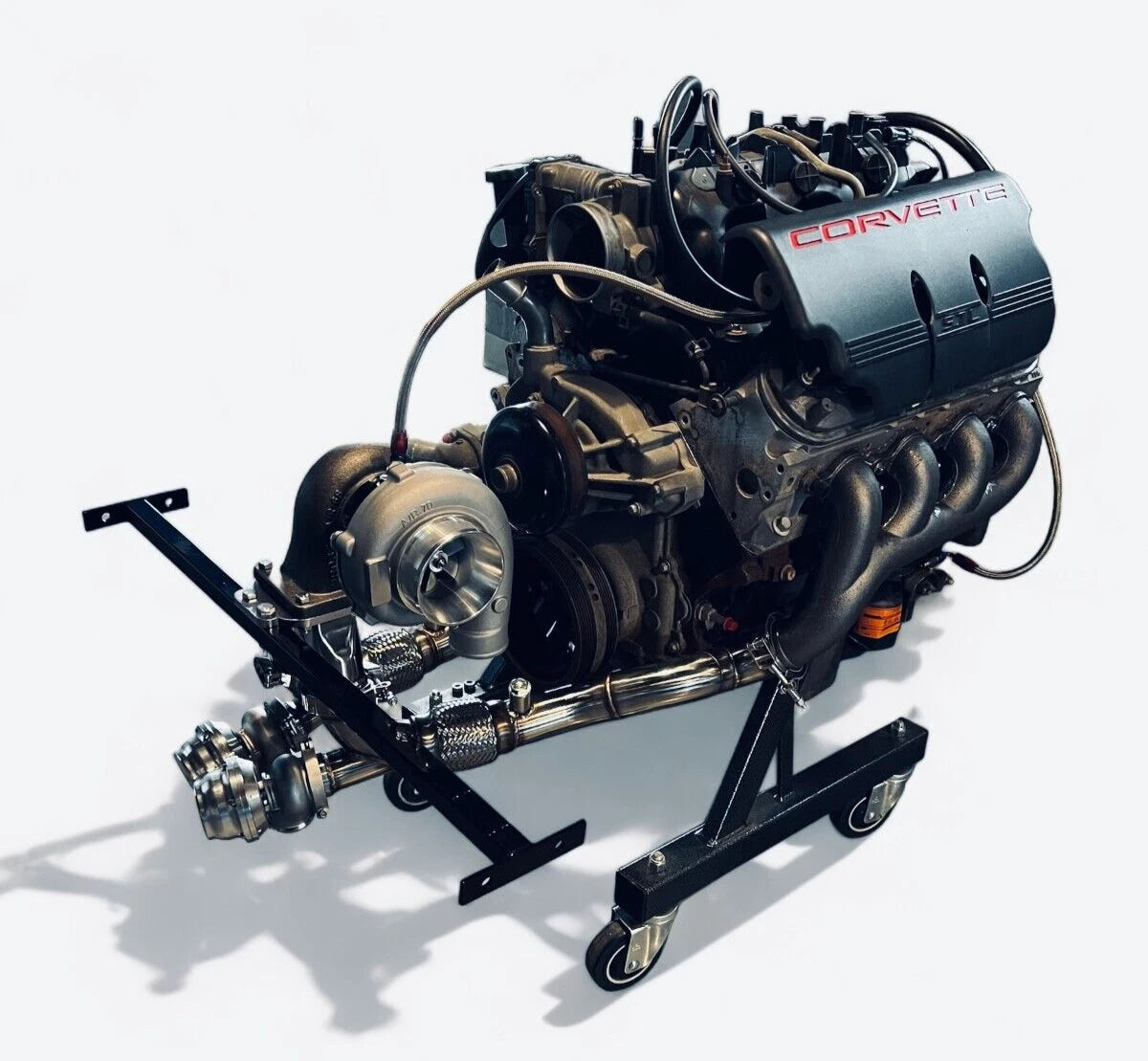

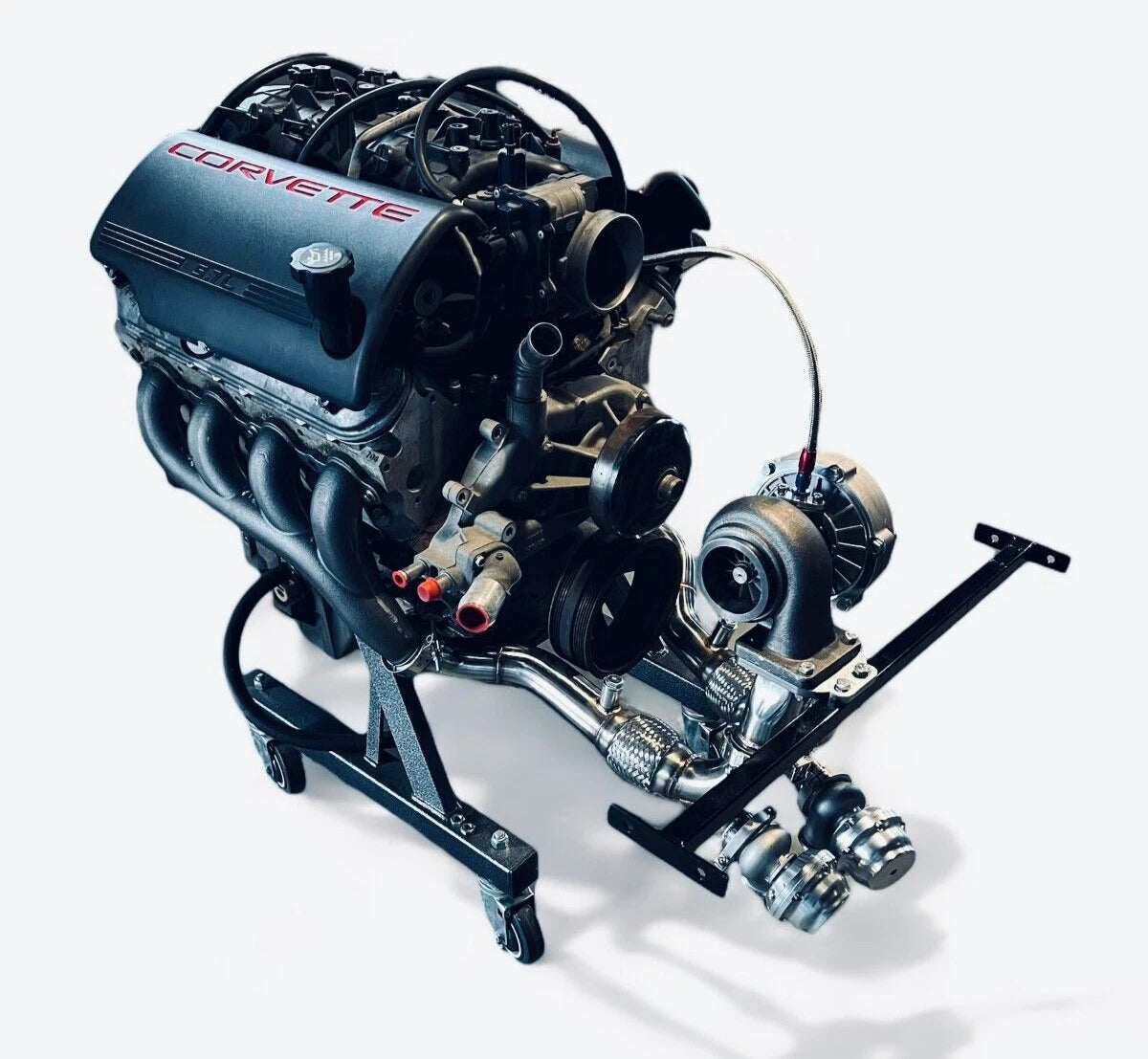

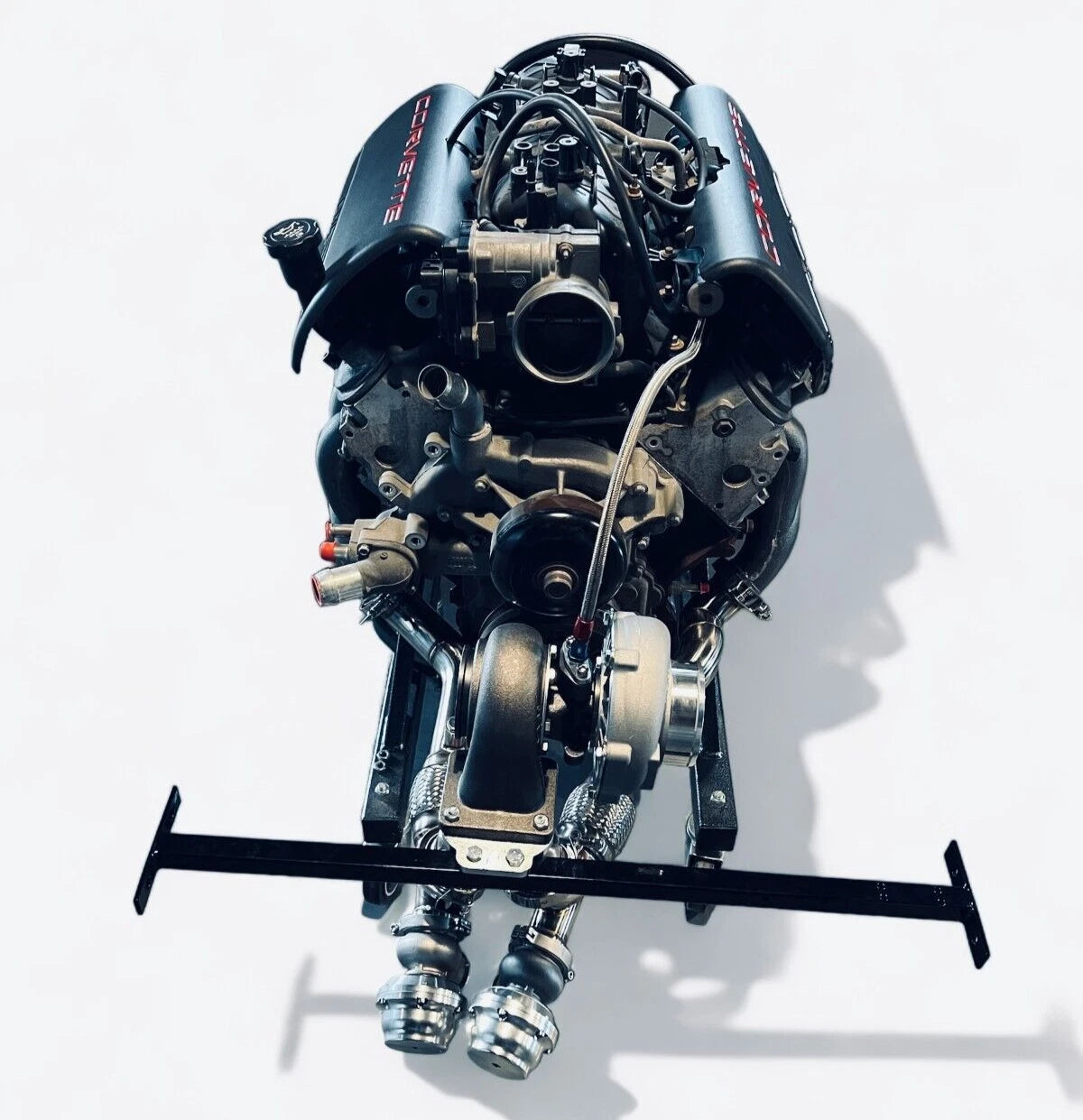

Build the exhaust side of a custom single-turbo Corvette system around an oil-cooled T70-style turbocharger, cast exhaust manifolds, stainless crossover piping, and a supported turbo pedestal.
Turbocharger Details
- T70-style turbocharger
- T4 turbine-inlet flange
- Oil-cooled wet-floating-bearing design
- 4-inch compressor inlet and 2.5-inch outlet
- 0.70 compressor A/R and 0.50 turbine A/R
- 0.60 compressor-wheel trim
- 1/8-inch NPT oil inlet
Hot-Side Components
- Cast turbo manifolds
- Stainless turbo pedestal
- Stainless crossover pipes
- V-band clamps
- Steel support bracket for turbocharger weight
Documented Applications
- 1997–2004 Chevrolet Corvette C5 with LS1 or LS6 engine
- Chevrolet Corvette C6 with LS2 engine; exact model-year and chassis compatibility must be verified
Important Notes
- This is a turbocharger and hot-side package, not a complete ready-to-run turbo system.
- Confirm engine code, cylinder-head flange, model year before ordering.
- Custom fabrication, welding, professional installation, fuel-system setup, and dyno tuning are required.
- No horsepower output or safe boost level is guaranteed.
