1989–1993 Ford Mustang 5.0L V8 Twin Turbo Intercooled Package
Complete twin turbo kit for the 1989–1993 Ford Mustang with the 5.0L V8 engine. A fully intercooled setup with all-new quality components designed to dramatically increase power output. On a stock motor, expect strong gains at conservative boost levels. Capable of well beyond 1000 HP with supporting modifications and a built engine.
Compatibility
- 1989–1993 Ford Mustang (5.0L V8)
- Fox Body Mustang platform

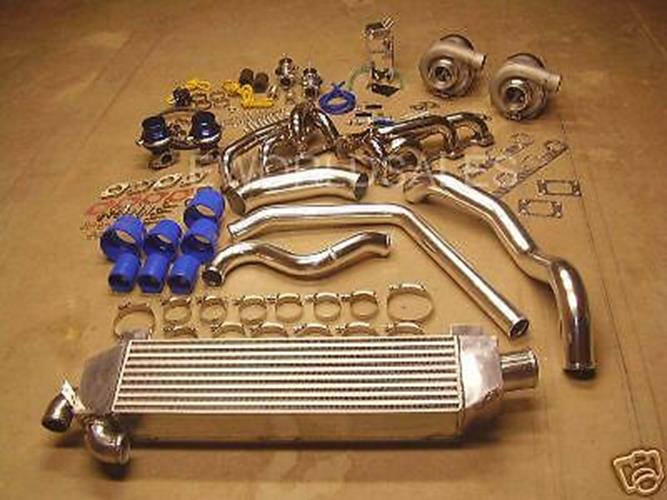

Kit Includes
[2x] T3 Turbochargers
- .57 compressor wheel trim for low and high boost setups
- Oil fitting gaskets & mounting studs included
- 450+ HP capable each
- Wet float bearings, properly balanced
- 3" inlet / 2" outlet
- .50 A/R compressor / .63 A/R turbine housing
- 1/8 NPT oil inlet
[2x] Stainless Steel Turbo Manifolds
- TIG welded stainless steel construction
- Large primary tubular piping
- Extra thick flanges for solid turbo support
- Fully ported and polished
- Gaskets and all hardware included
Front Mount Intercooler (FMIC)
- Large aluminum racing intercooler
- Strong TIG welds rated for high PSI
- 2.5" cold outlet & 2.5" hot inlet
- Less than 2% pressure drop
Additional Components
- Aluminum intercooler piping kit with silicone couplers and clamps
- Manual boost controller (MBC) — CNC machined, anodized aluminum
- [2x] Internal or external wastegate kits
- Blow off valve (BOV) with complete install kit
- [2x] Turbo oil feed and drain line kits
- Fuel pressure regulator with precision gauge
- Oil catch can
- Electronic turbo timer with LED display
- Slimline cooling fan (reversible push/pull)
- [2x] High flow cone air filters — washable
- [2x] Stainless downpipe kits with O2 sensor bung
- Heat wrap — 50 ft roll, high-temp fiberglass
- Boost gauge — 52mm, backlit
