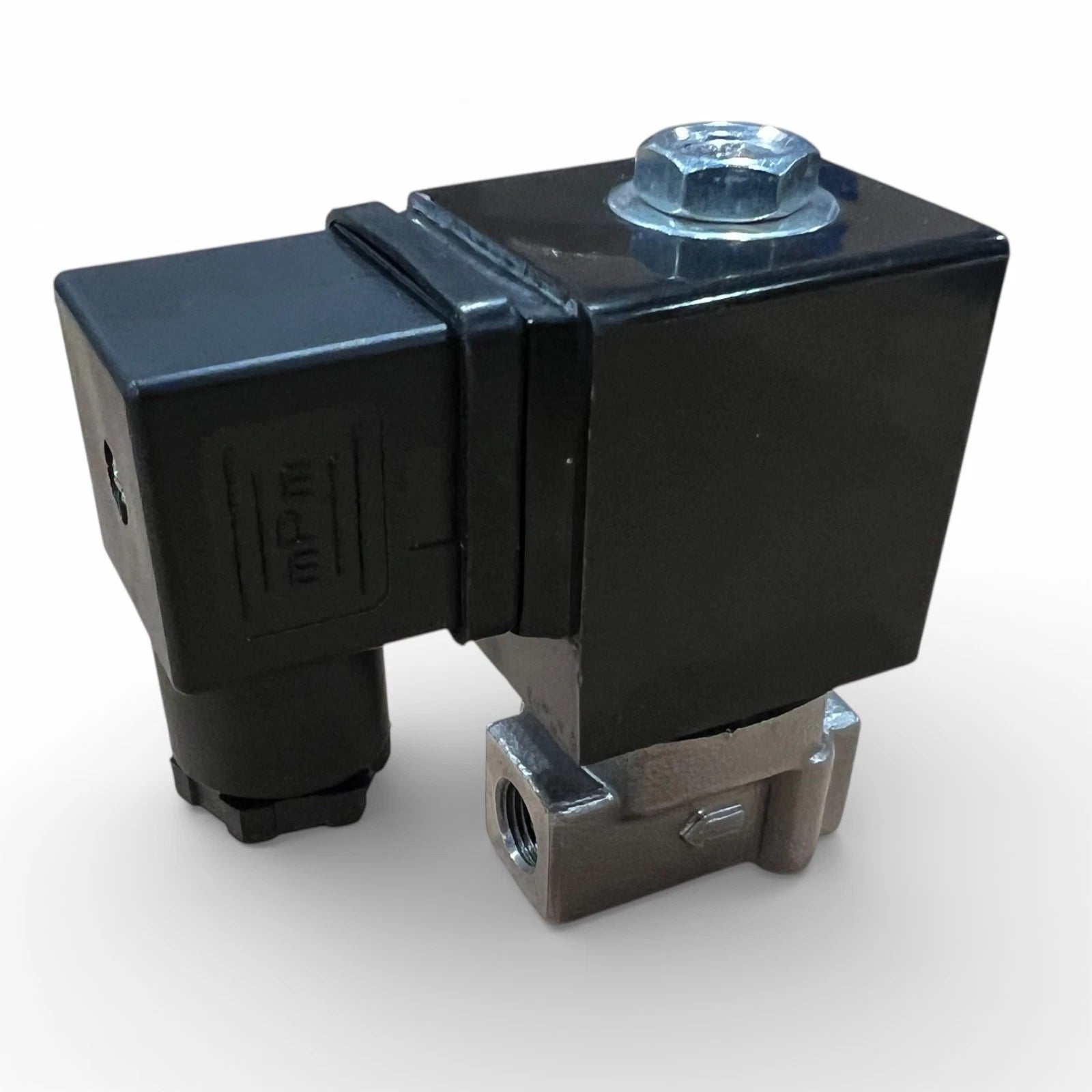

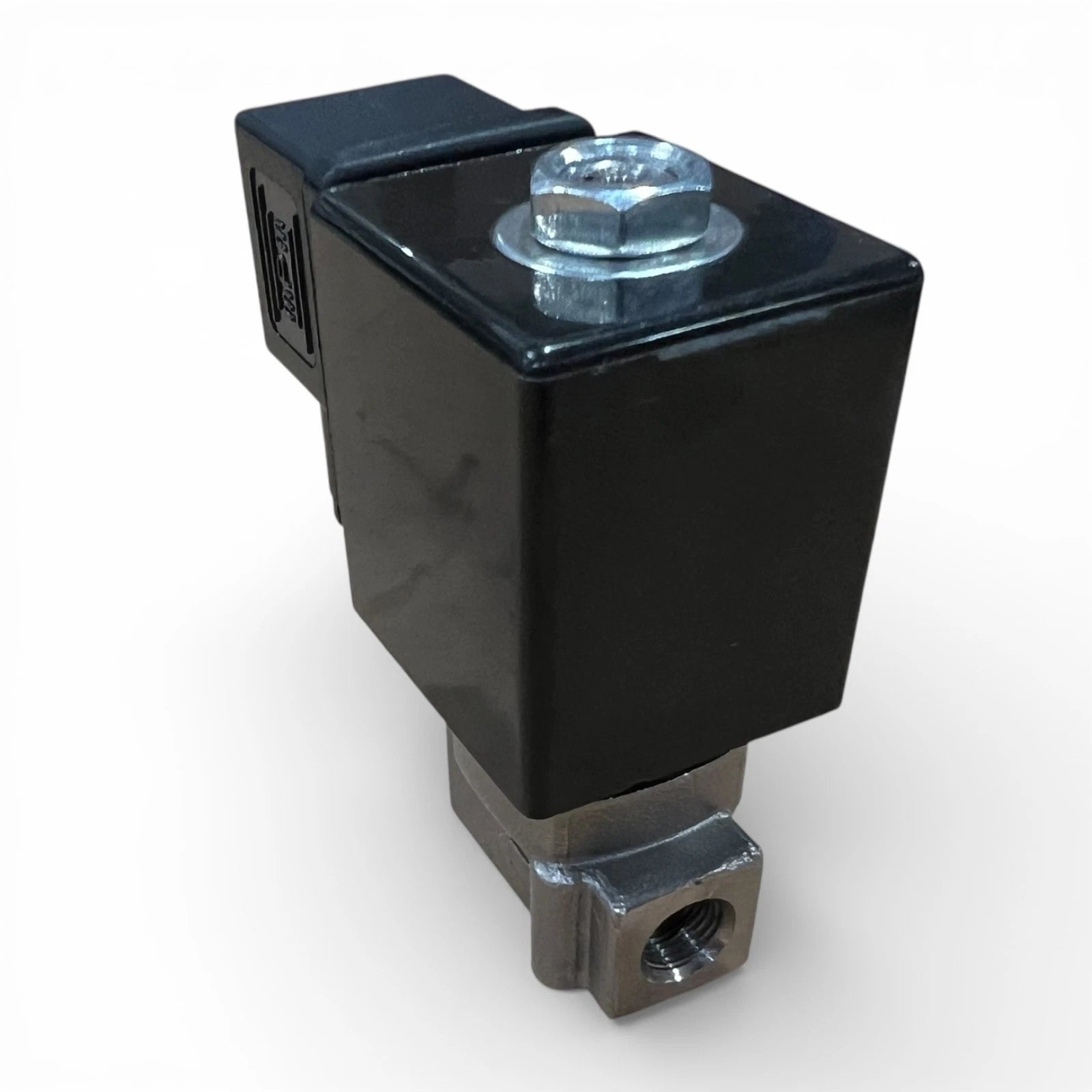

12V High-Pressure G1/8 Solenoid Valve
Control compatible air, inert gas, water, or liquid circuits with this direct-acting two-way process valve. Its normally closed design shuts flow off when power is removed and opens when the 12V DC coil is energized.
Specifications

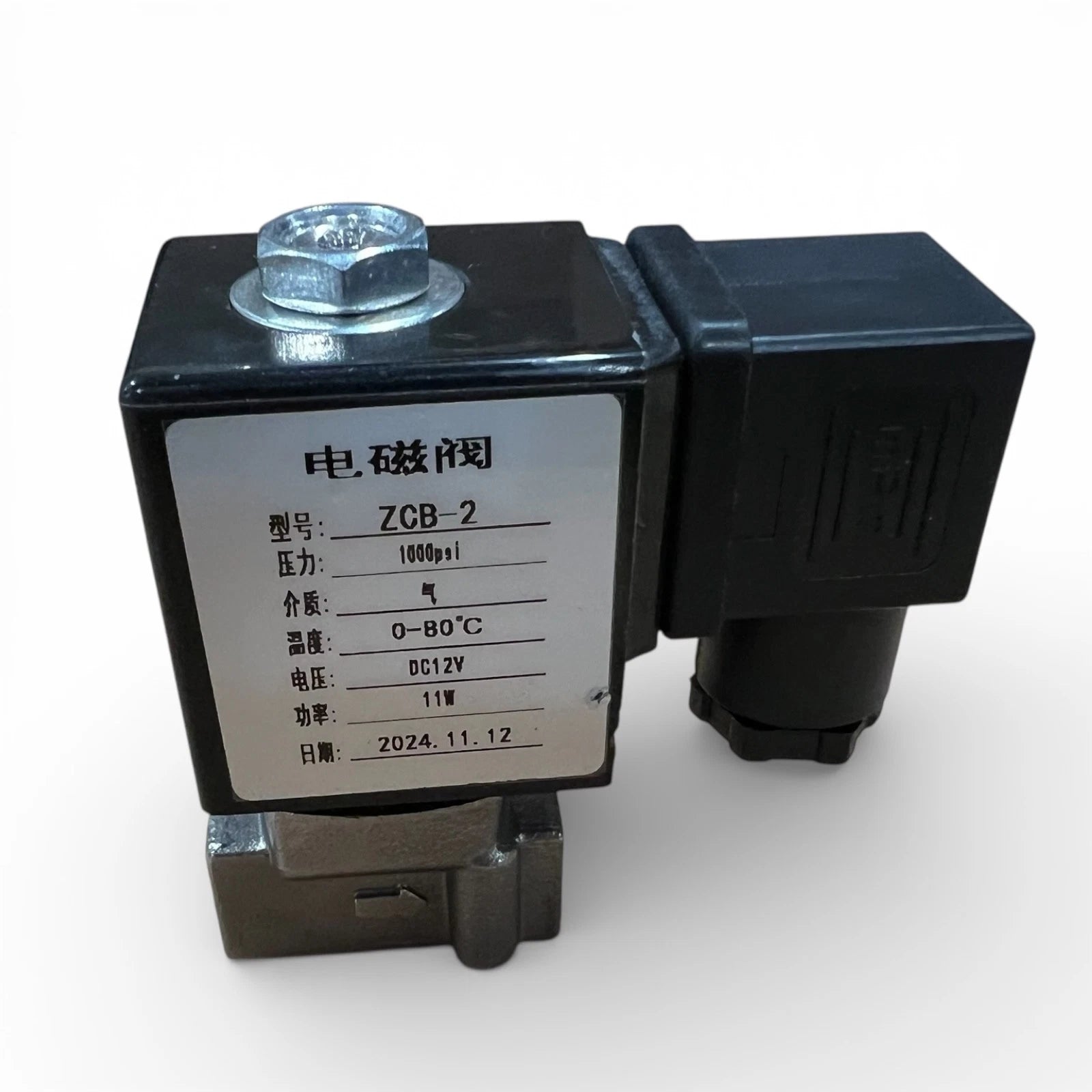

- Model: ZCB-2
- Valve type: two-way, normally closed
- Operation: direct acting, unidirectional flow
- Zero-differential operation; no minimum inlet pressure required
- Maximum listed pressure: 70 bar / 1,000 psi

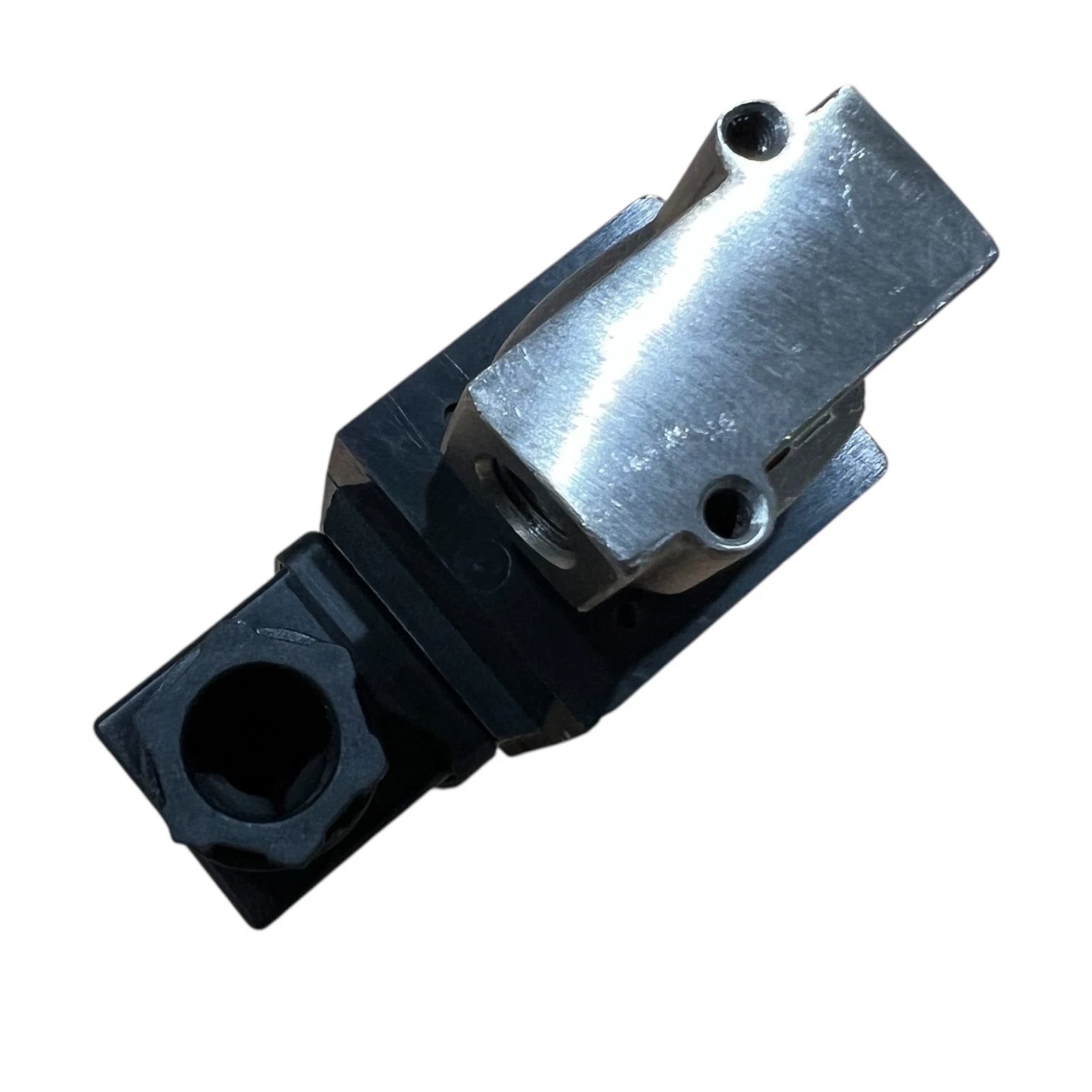

- Inlet and outlet: G1/8 BSPP
- Coil voltage: 12V DC
- Coil power: 11W
- Operating temperature: 0–176°F / 0–80°C
- Steel valve body
- PTFE seal
- Stainless steel armature tube, spring, and plunger
- CE-certified, encapsulated continuous-duty coil
Compatible Media
- Air
- Inert gas
- Water
- Compatible liquids
Important Notes
- Flow is directional; install according to the marked inlet and outlet.
- Verify pressure, temperature, seal, body-material, thread, voltage, and media compatibility for the intended system before use.
- Use correctly rated fittings, wiring, circuit protection, and pressure-system safety equipment.
- Installation by a qualified technician is recommended.
