T4 Mount Stainless 2nd Gen Swap Manifold +GT45 TURBO UNIT
98-19 6.7L 5.9L Dodge RAM Cummins Diesel
PRODUCT DETAILS:
fits 2nd Gen Cummins 24-Valve (1998.5-2002)
*fit 2003-2019 5.9/6.7L Cummins when used in a 2nd Gen Swap
-2 ports drilled and tapped for probes

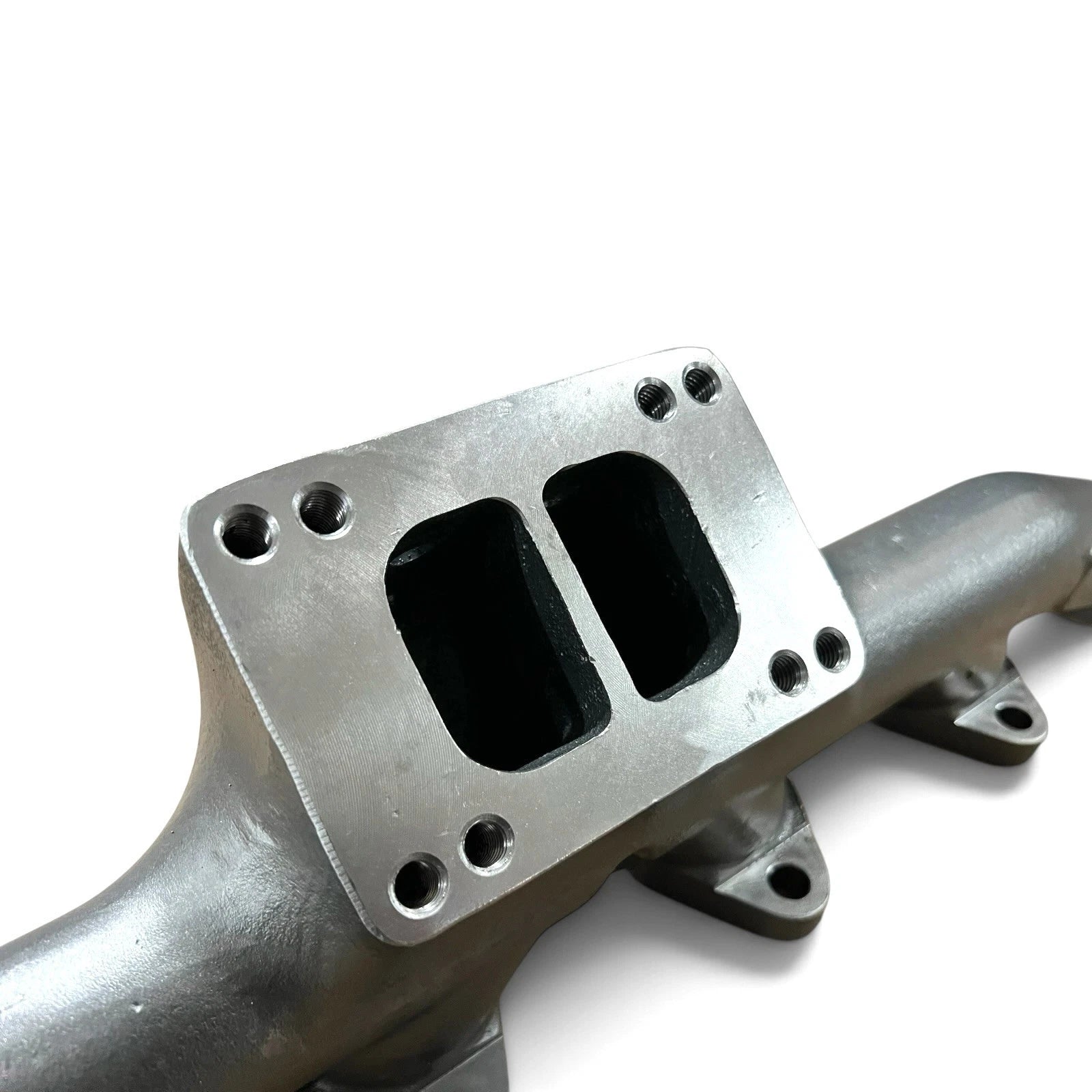

-High quality cast stainless steel manifold that is cnc machined
-Edges are chamfered/deburred
-Manifold features 3/4" thick center section, nice for porting etc
-Thick wall casting will help keep heat in
-The inside runner sizing is 1.650" all the way to the center outlet for high flow

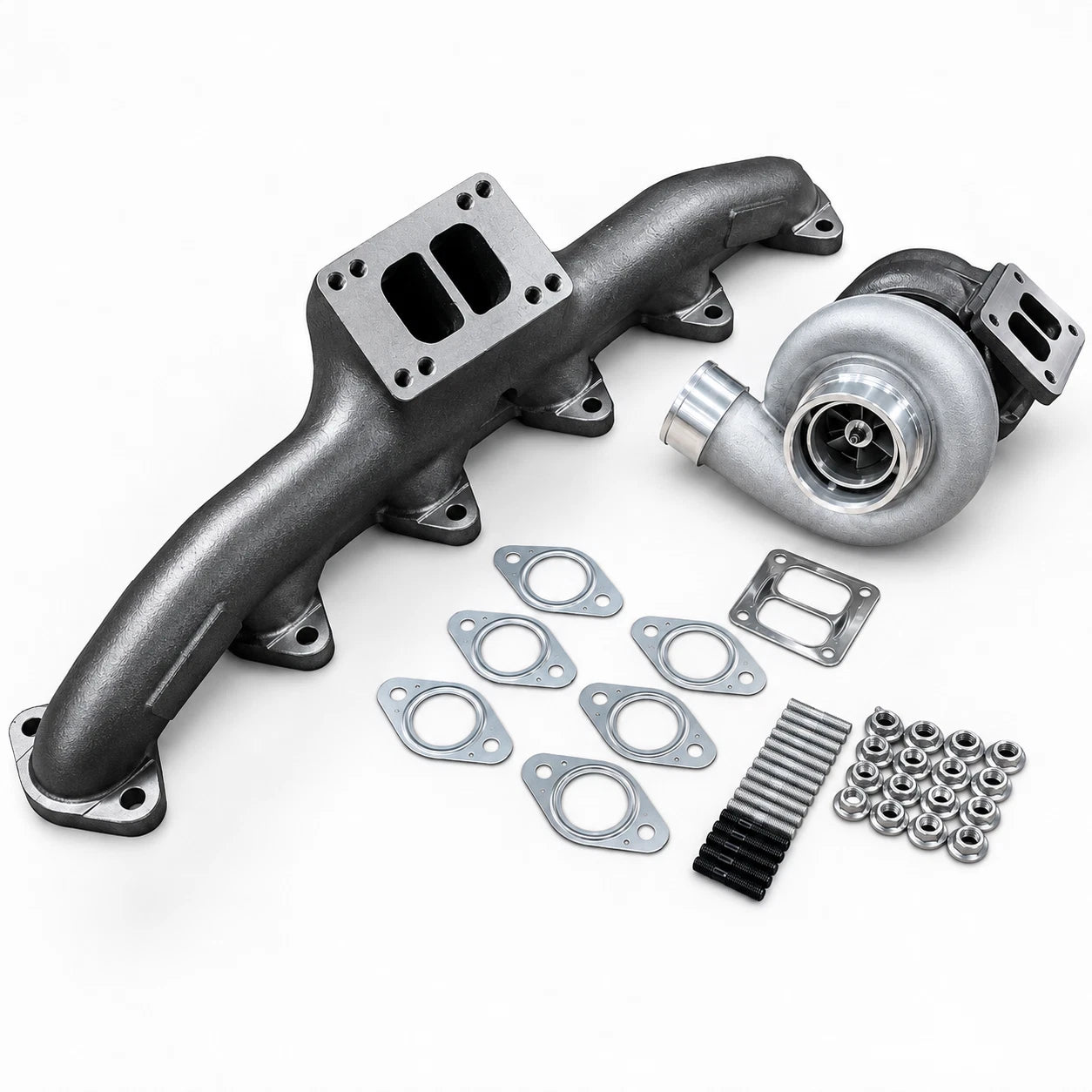

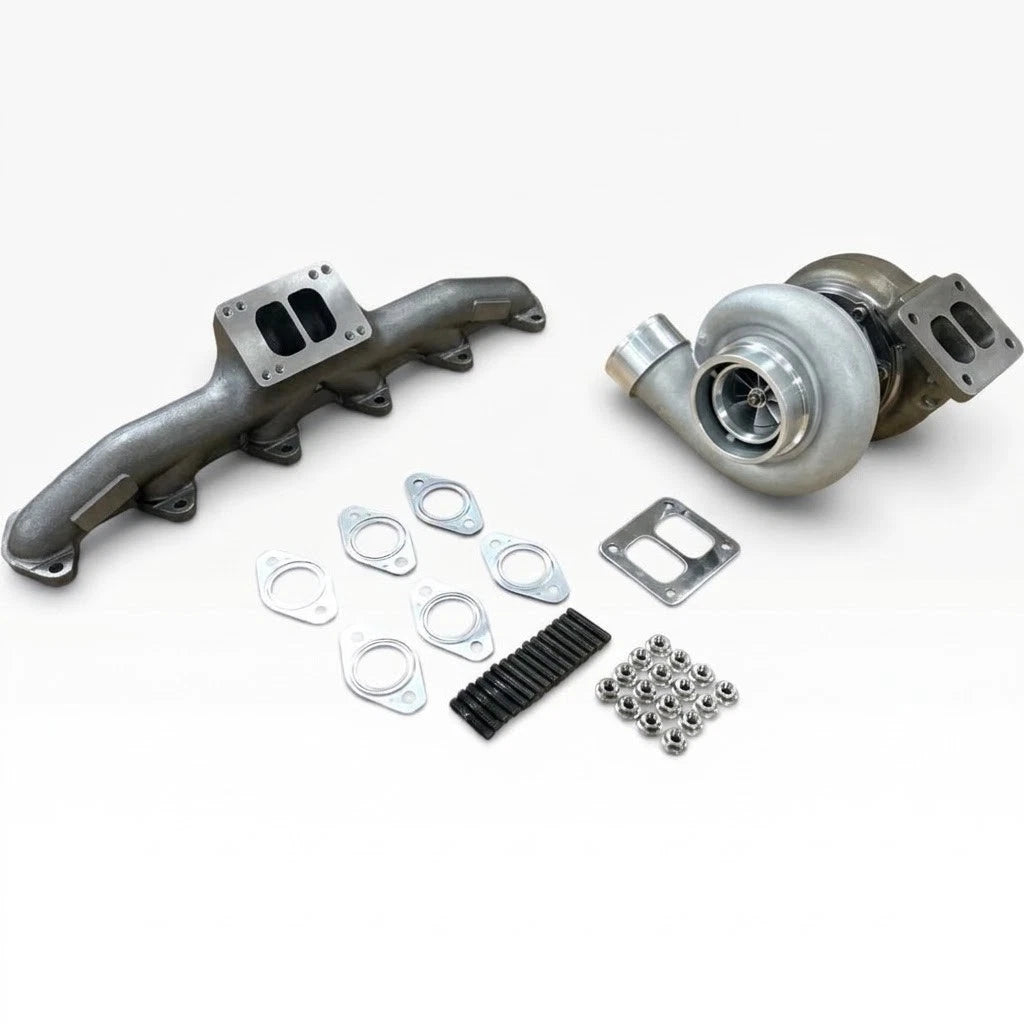

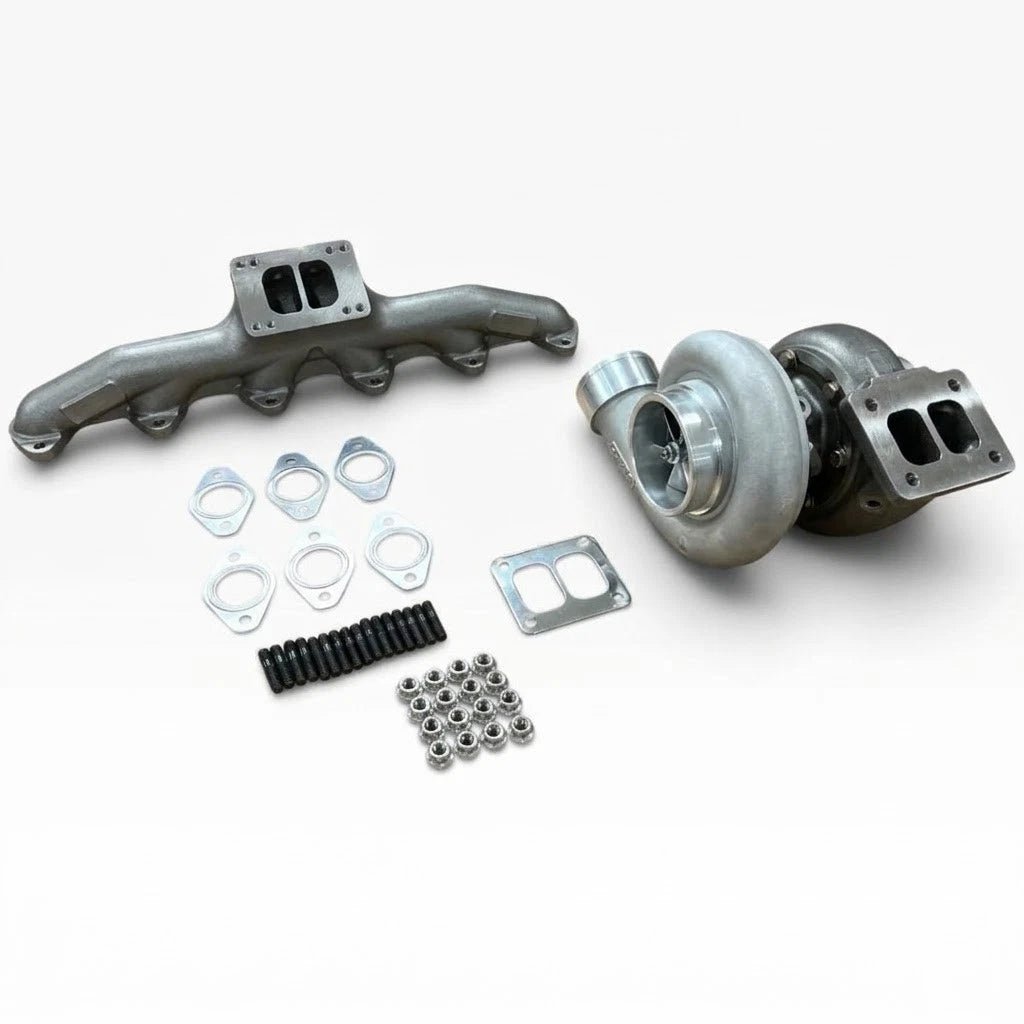

Includes: MANIFOLD
-12x stainless steel studs with serrated nuts (Recommended Torque - 36-41 ftlbs.)
-T4 divided metal turbo gasket
-Multi layer exhaust manifold gaskets
-Studs And nuts For t4 flange

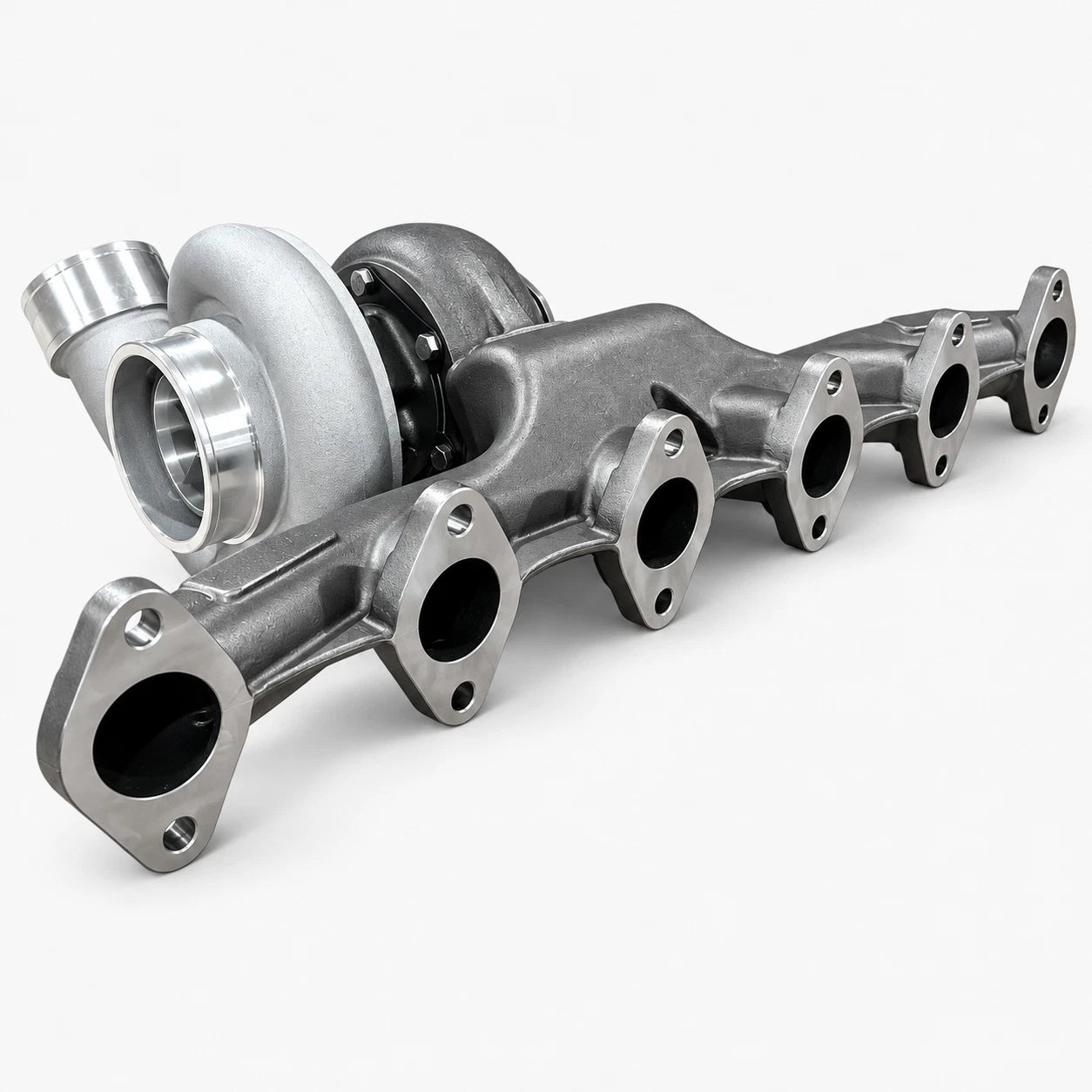

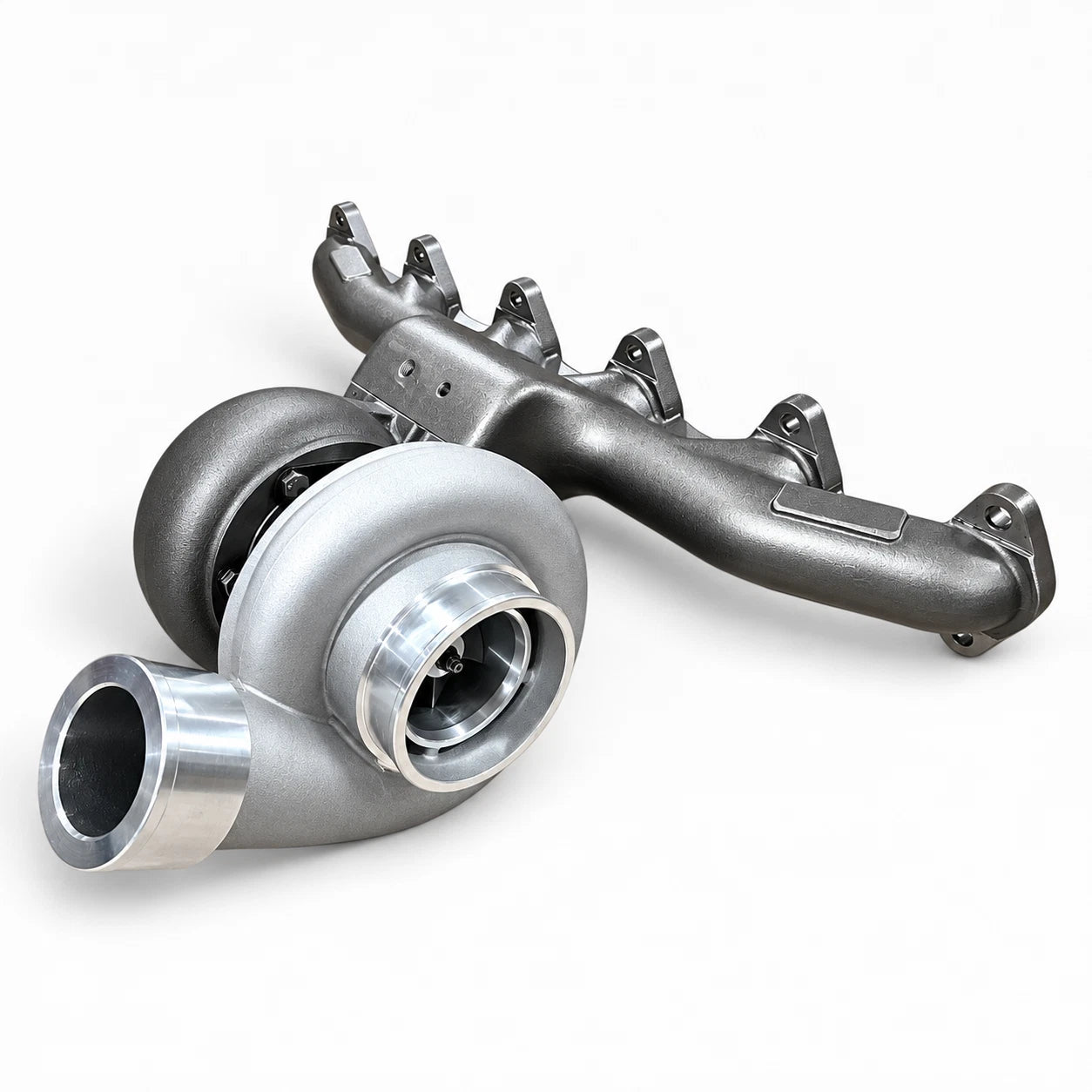

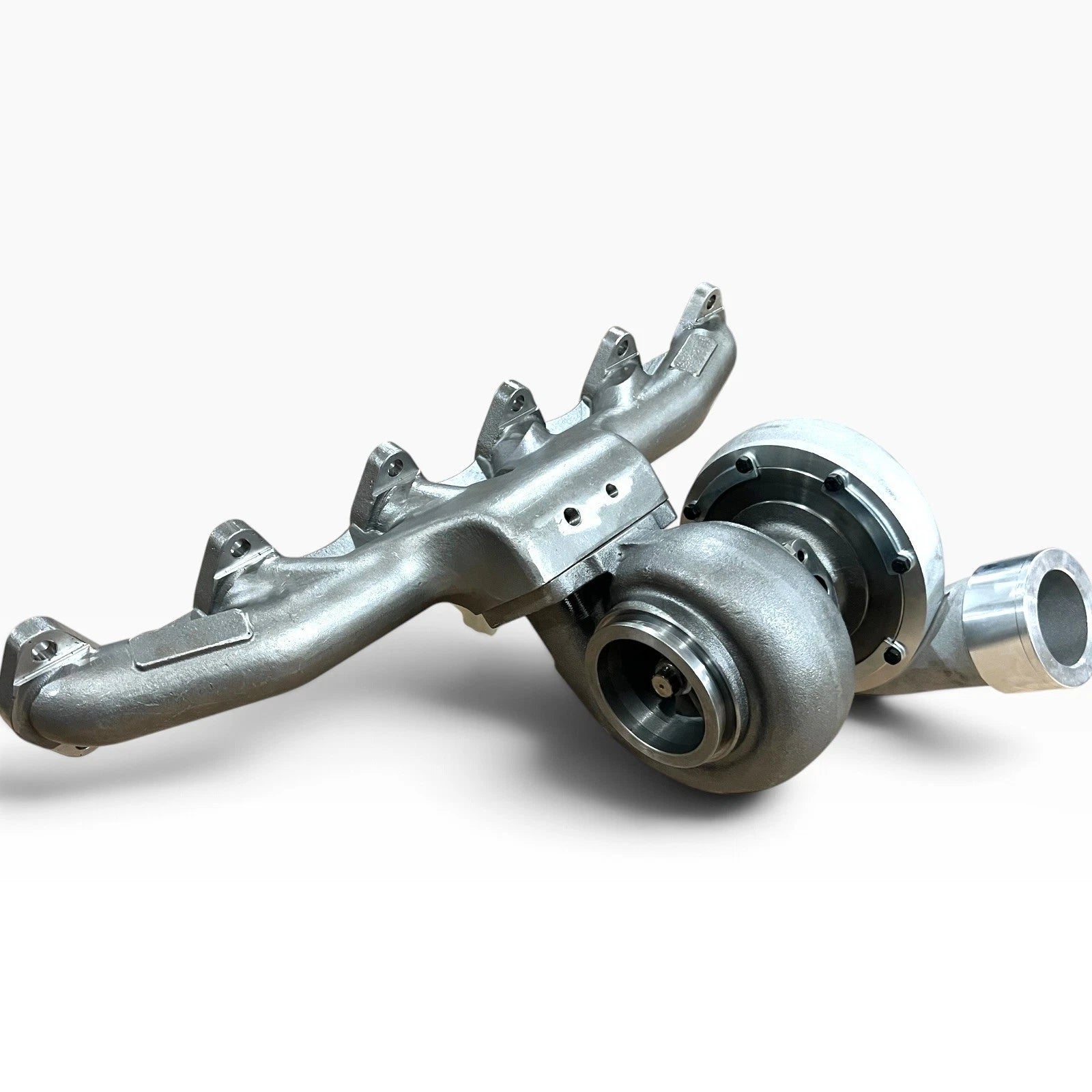

Includes: GT45 TURBO
-Exhaust Inlet (Turbo Manifold) Flange: T4
-Exhaust Outlet Flange: V-Band Flange
-4" inlet diameter with a 2.5" outlet
-Compressor Exducer Diameter: 98mm
-Compressor Air Inlet Size: 107mm
-Turbine Inducer Diameter: 88mm
-Turbine A/R: 1.05
-Cooling Type: Oil Cooled
Note: like all cast manifolds you may seen casting flaws. This does not affect the performance of the unit.
