T3/T04E Turbo Package for Toyota 5VZ-FE 3.4L V6
Build a custom turbo system for a Toyota truck or SUV with the 3.4L 5VZ-FE V6. This package combines the main turbo, hot-side, charge-air, oiling, boost-control, cooling, fuel-support, and monitoring components for a professionally fabricated and tuned installation.
Fitment
- 1997–2004 Toyota Tacoma 3.4L V6
- 1996–2002 Toyota 4Runner 3.4L V6
- 1995–1998 Toyota T100 3.4L V6
- 2001–2004 Toyota Tundra 3.4L V6

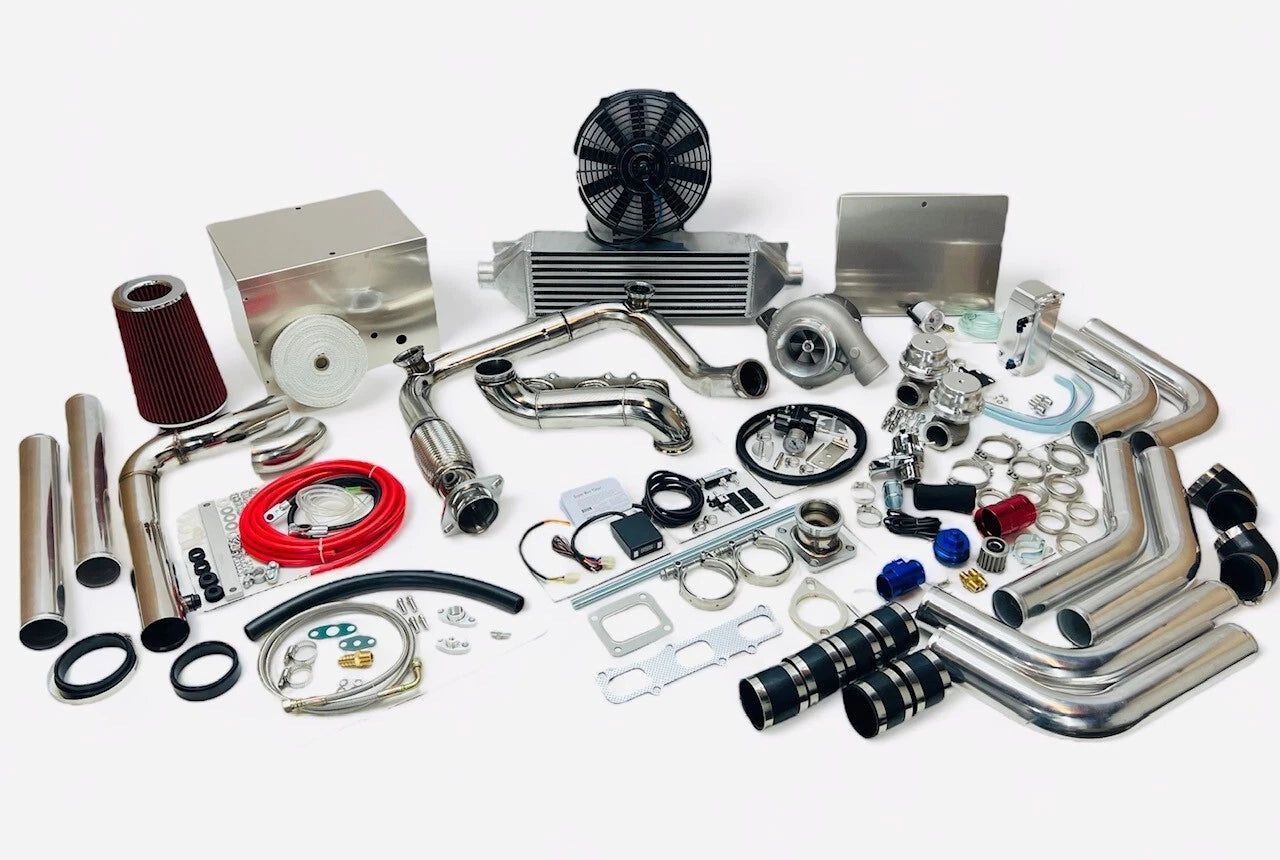

Core Turbo Components

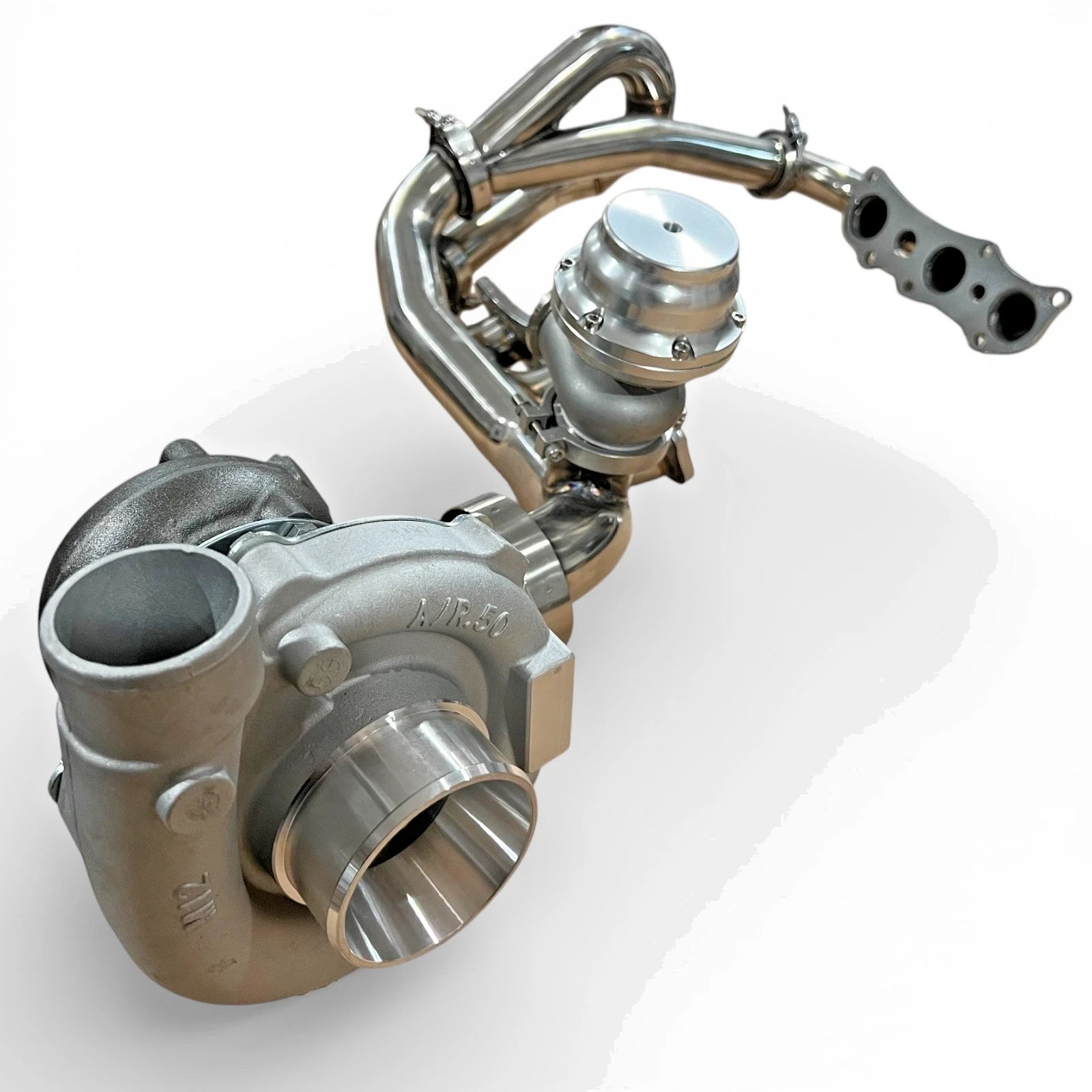

- T04E turbocharger with 0.57 compressor trim, 0.50 A/R compressor housing, 0.63 A/R turbine housing, 3-inch inlet, 2-inch outlet, and 1/8-inch NPT oil inlet

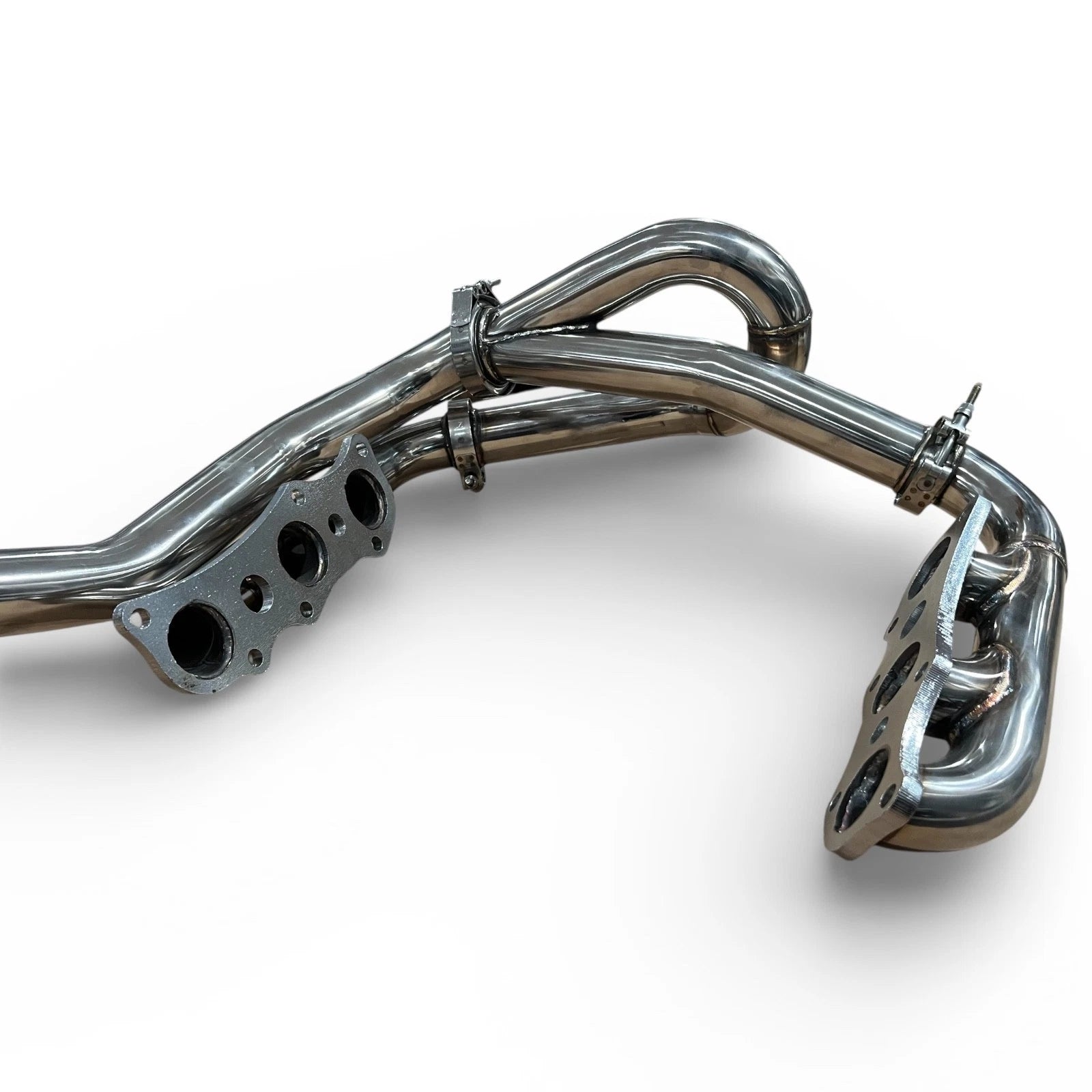

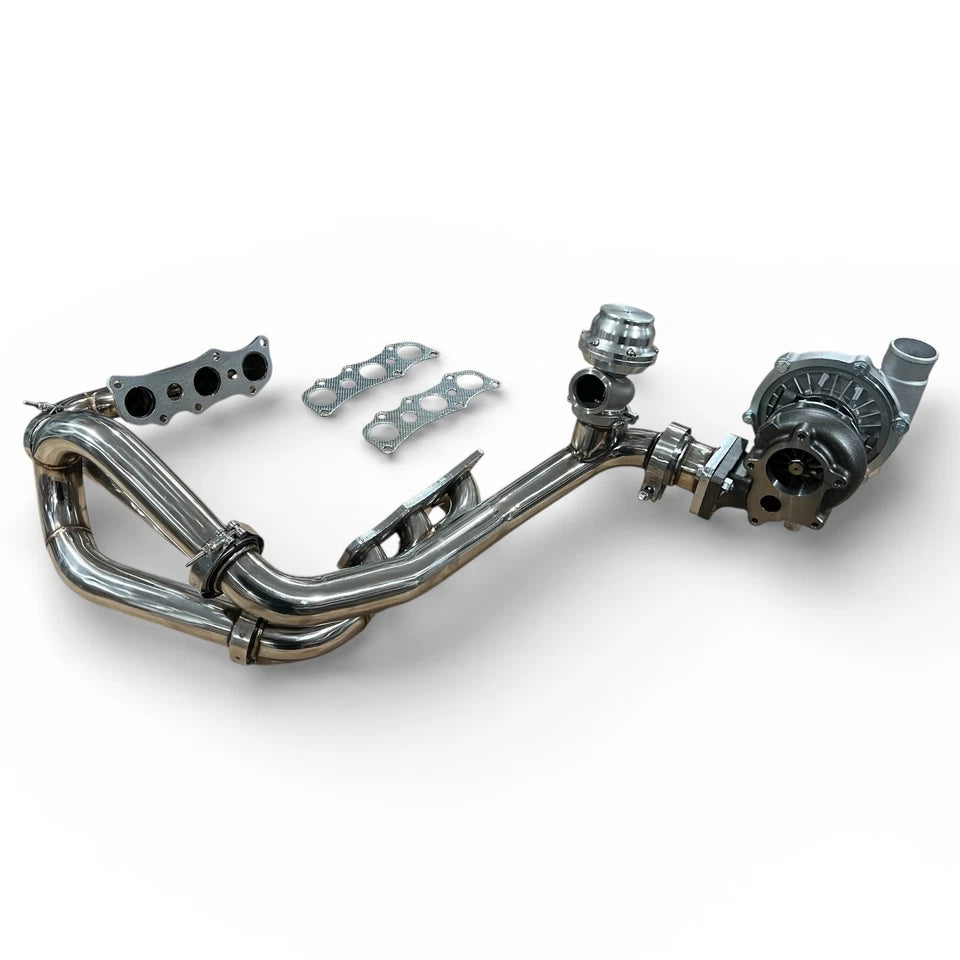

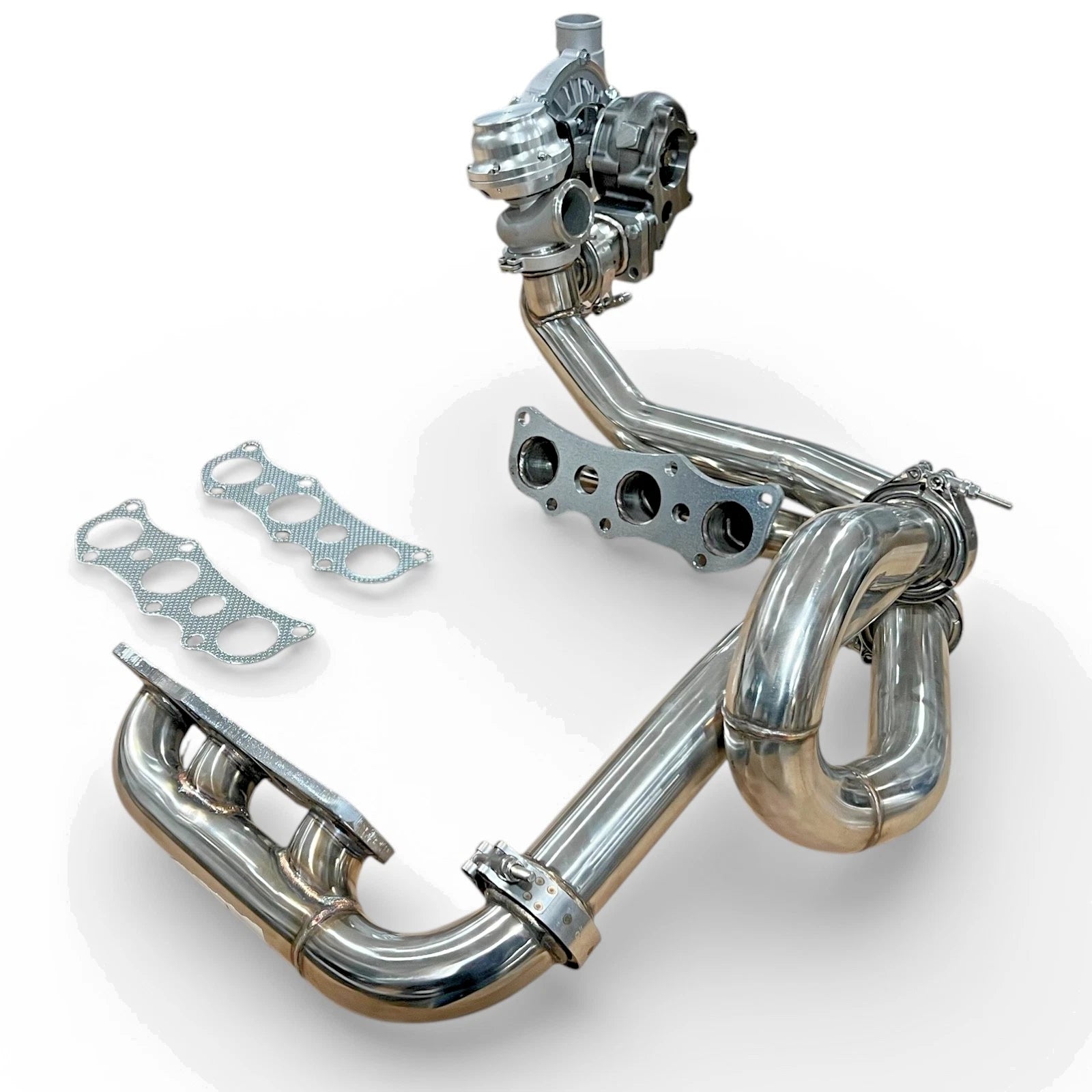

- Stainless exhaust manifolds, tubular merge/crossover pipe, clamps, and T3 adapter
- Front-mount aluminum intercooler
- 2.5-inch aluminum intercooler piping, silicone couplers, bends, straight pipes, and 16 stainless worm-drive clamps
- Turbo oil-feed and high-temperature oil-return components with fittings, gaskets, studs, and hardware
- Manual boost controller
- 44 mm external wastegate with gasket and bolts
- Blow-off valve with installation flange
- Polished exhaust pipe with two-bolt flange and turndown
Supporting Components
- Battery relocation kit with cables, straps, and hardware
- Reversible slim cooling fan with mounting tabs and wiring
- Electronic turbo timer with display and wiring
- Adjustable fuel-pressure regulator, gauge, and -6AN inline filter
- Oil catch can
- Coolant bung
- 50-foot roll of 1-inch heat wrap
- 4-inch washable cone air filter
- 52 mm white-face boost gauge with bracket and instructions
Important Notes
- Advertised horsepower, boost capacity, and power-gain claims are not guaranteed and depend on engine condition, supporting modifications, fuel, calibration, and installation quality.
- Custom fabrication, exhaust work, wiring, hose routing, battery relocation, intercooler mounting, and component positioning may be required.
- Confirm engine code, manifold pattern, steering position, transmission, air-conditioning and power-steering clearance, radiator and fan space, and emissions-equipment requirements before ordering.
- Additional fuel-system and engine-management components may be required.
- Professional installation, pressure testing, and dyno tuning are required. Set boost conservatively for the engine and supporting components.
